Which way should the arrow point on my cabin air filter?

Align a cabin filter’s AIR FLOW arrow with your vehicle’s actual airflow through the housing. Treat UP/TOP as a physical orientation mark only. Use the housing’s own arrow or your owner’s manual for your exact model; if unclear, ask a technician.

By Driven & Kept editorial team · 2026-10-24

Close up of a cabin air filter held near a car glove box opening showing the airflow arrow toward passenger compartment

Short answer: Point an AIR FLOW arrow so it follows the vehicle’s actual airflow through that filter housing. If your filter instead says UP or TOP, seat that edge upward; that mark controls orientation, not airflow. Use the housing’s own airflow arrow or your exact vehicle owner’s manual to confirm. If markings are missing or access isn’t straightforward, stop and ask a technician for help (FRAM guidance).

How to read the markings: AIR FLOW vs UP/TOP

AIR FLOW means direction. Install the filter with its arrow aligned to the way air travels into the passenger compartment. FRAM explains that when a filter uses airflow arrows, they should point toward the cabin, matching air movement from outside into the vehicle (FRAM: Air flow direction).

UP or TOP means orientation. If your filter shows UP/DOWN, the UP edge faces upward in the housing; it does not indicate airflow direction. FRAM differentiates these markings clearly and advises using your vehicle manual if arrows are absent (FRAM: UP vs airflow).

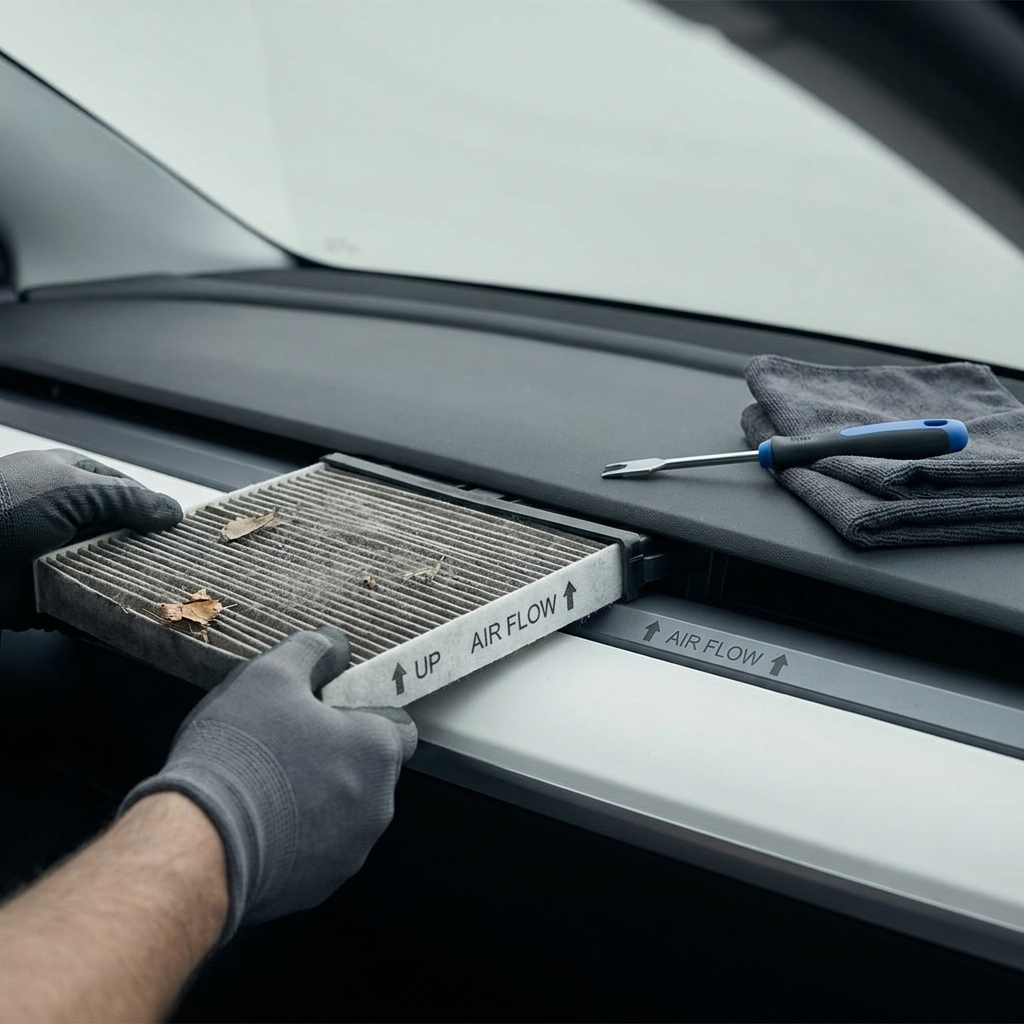

Hands removing an old cabin air filter from a housing showing UP and AIR FLOW markings inside a clean car cabin in graphite and cobalt accents

Find the correct direction on your specific vehicle

Use markings and documentation that apply to your exact model. Avoid guessing from pleat shape, brand printing, relative cleanliness of faces, or blower noise. Do not run the fan with the filter out or the housing open.

Check the filter housing or access door first. Many vehicles mold an airflow arrow or the words AIR FLOW into the tray or cover. Match the filter’s AIR FLOW arrow to the housing’s arrow if present (Filterbuy: housing markings).
If the filter shows UP/TOP, seat that edge upward and let the housing design set the airflow path (FRAM: UP/TOP instruction).
No clear markings? Use your owner’s manual for that model’s procedure. FRAM advises consulting your manual or a professional mechanic rather than guessing (FRAM: consult the manual or a mechanic).

Install it correctly, step by step

Switch the HVAC system off and open the access panel (often behind the glove box or at the cowl, depending on vehicle).
Locate any airflow arrow on the housing or cover. Note if your new filter shows AIR FLOW or UP/TOP.
Insert the filter:
- If marked AIR FLOW, point the arrow in the same direction the car’s HVAC moves air through that housing, which FRAM describes as toward the cabin (FRAM: airflow arrow toward the cabin).
- If marked UP/TOP, install with that edge facing upward in the tray (FRAM: UP/TOP).
Seat the filter fully so the frame and any gasket sit flat with no gaps.
Close and latch the cover securely before turning the fan back on.

If a filter is installed backward relative to its airflow mark, FRAM notes it may not perform as intended and can load more quickly. Reorient it correctly to restore designed operation (FRAM: effects of incorrect orientation).

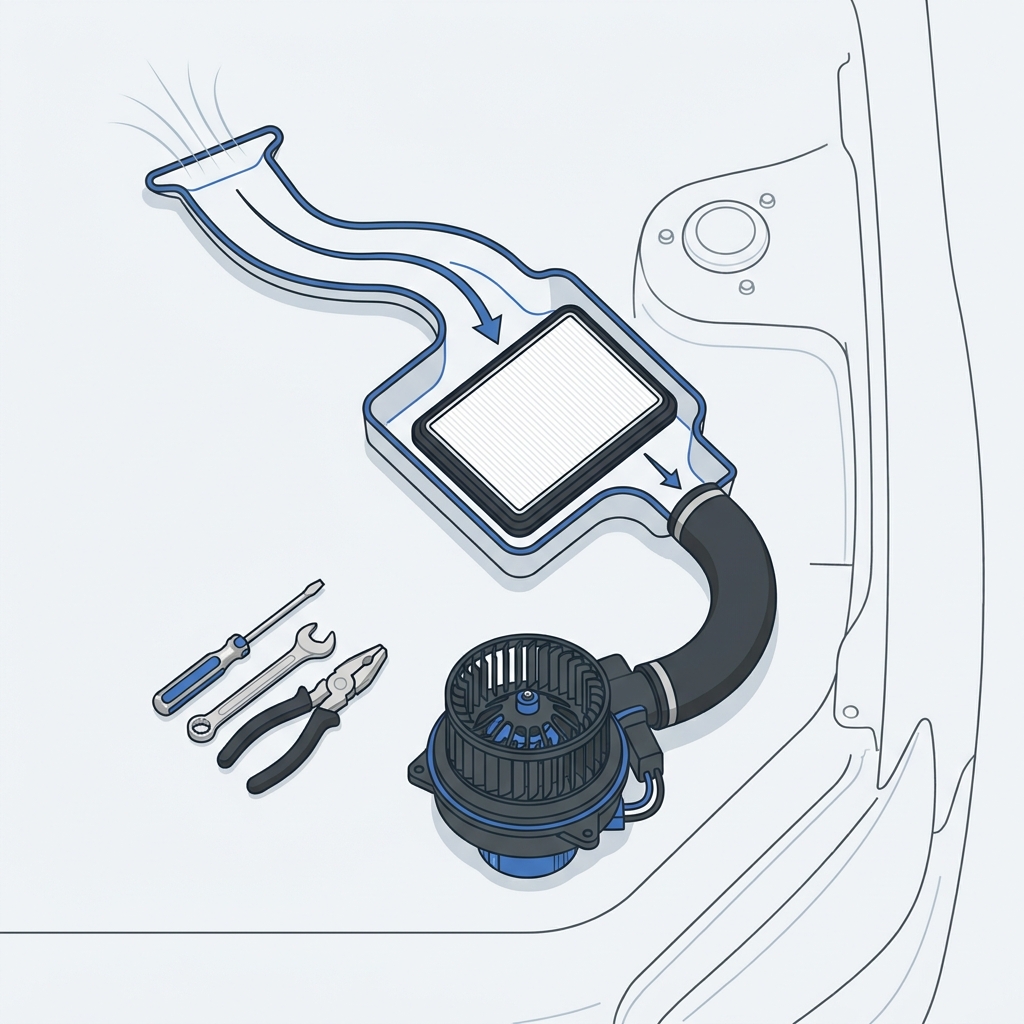

Overhead 2D vector of car fresh air intake path and blower with tool set on chalk background

Common mistakes to avoid

Confusing UP/TOP with AIR FLOW. They are different instructions; satisfy each as labeled.
Ignoring a molded housing airflow arrow. When present, it outranks assumptions.
Guessing based on pleat shape, brand printing, visible dirt, or blower noise. These are not reliable orientation tests.
Running the blower with the filter removed or the housing open. Close and latch the cover first.
Forcing a poor fit. A correctly oriented filter still needs to sit flat and sealed.

Before you close the cabin filter housing: orientation check

Match the filter’s AIR FLOW arrow to the housing’s airflow arrow or your owner’s manual instructions for your exact model
If the frame says UP/TOP, seat that edge upward; do not treat it as an airflow arrow
Confirm the filter sits flat with no gaps and the cover is fully latched before turning the fan on
If markings are unclear or access requires steps you haven’t done before, stop and have a qualified technician confirm orientation

Short FAQ

What if there are no arrows on my new filter?
FRAM advises using your vehicle’s owner’s manual for the proper procedure. If you’re uncertain, ask a professional mechanic rather than guessing (FRAM: when arrows are absent).

Should I point the arrow toward the blower?
Do not assume a direction based on component location. Follow the housing’s airflow marking or your vehicle manual. FRAM’s general instruction is to align an AIR FLOW arrow with the air movement into the cabin; use the car’s own markings to decide the exact direction on your model (FRAM: align with cabin airflow).
